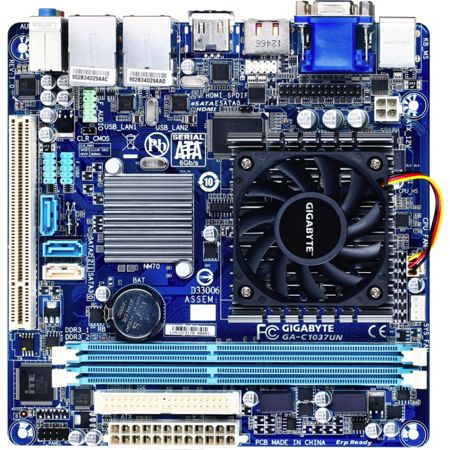

Gigabyte Ultra Durable 4 Classic GA-C1037UN Desktop Motherboard - Intel NM70 Express Chipset - Socket BGA-1023 - Intel Celeron 1037U Dual-core (2 Core) 1.80 GHz Item # 532393
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
532393
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration an exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.Gigabyte Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users' encounter on a day-to-day basis.
Product Details
| Item # | 532393 |
| Manufacturer # | GAC1037UN |
| Number of SATA Interfaces | 3 |
| Number of PS/2 Ports | 2 |
| Hardware Features | DualBIOS, Q-Flash, AutoGreen, All-Solid Capacitor motherboard Design, On/Off Charge, Ultra Durable 4 Classic, Intel Smart Connect Technology, Clear CMOS Button |
| Power Supply Supported | ATX12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Number of Network (RJ-45) Ports | 2 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x parallel - header ¦ 1 x serial - header |
| Graphics Controller Manufacturer | Intel |
| Onboard Parallel Header | Yes |
| Product Line | Ultra Durable 4 Classic |
| eSATA | Yes |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 1 x 7pin Serial ATA - 1 devices ¦ SATA-300 -connectors: 2 x 7pin SATA, 1 x 7pin eSATA - 3 devices ¦ ATA-133 -connectors: 1 x 40pin IDC - 2 devices |
| Total Processor Supported | 1 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1333 MHz, 1066 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Audio Channels | 7.1 |
| Number of IDE Interfaces | 1 |
| Number of USB 2.0 Ports | 4 |
| PS/2 Port | Yes |
| Memory Form Factor | DIMM |
| Integrated Processor Cache | 2 MB |
| Processor Socket | Socket BGA-1023 |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | NM70 Express |
| Onboard Video | CPU Dependent Video |
| Number of PCI Slots | 1 |
| Number of eSATA Ports | 1 |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| HDMI | Yes |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| height | 5.2in. |
| Total Number of USB Ports | 4 |
| Integrated Processor Speed | 1.80 GHz |
| Serial Port | Yes |
| Onboard Audio Header | Yes |
| width | 6.7 in |
| Number of Memory Slots | 2 |
| Sound Controller Model | ALC887 |
| depth | 6.7 in |
| Product Name | Ultra Durable 4 Classic GA-C1037UN (rev. 2.0) Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Integrated Processor Type | Celeron |
| Integrated Processor Manufacturer | Intel |
| Audio Line Out | Yes |
| weight | 1.90 lb |
| Integrated Processor Core | Dual-core (2 Core) |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| controller type | Serial ATA/600; Serial ATA/300; Ultra ATA/133 (ATA-7) |
| Number of Onboard USB 2.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Graphics Controller | Intel HD Graphics |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Integrated Processor Model | 1037U |
| Number of Total Expansion Slots | 1 |
| Chipset Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Memory Technology | DDR3 SDRAM |
| form factor | Mini ITX |
| Number of HDMI Outputs | 1 |
| warranty length | 3-year limited |
| model name | GA-C1037UN |
| Show More ▾ |
